Longdon-on-Tern Aqueduct
This structure is the oldest surviving navigable iron aqueduct in the world. It once carried the Shrewsbury Canal over the River Tern. You can walk in the trough because the canal no longer exists. It is an early example of cast iron civil engineering delivered by Thomas Telford who would go on to to use this material as a staple for some of his most famous works.
Key info
Location | Longdon-on-Tern, TF6 6LJ |
County | Shropshire |
Completed | 1796 |
Engineers | Josiah Clowes & Thomas Telford |
Maintained by | Historic England |
Heritage category | Scheduled Monument Listed Building Grade I |
Visiting guide
Open 24 / 7
Free entry
Free car park
What can I expect when visiting Longdon-on-Tern Aqueduct?
The Longdon-on-Tern Aqueduct is accessed across a field from a public gate off the B5063 layby. If there are cattle in the field, stick to the edges and do not approach them, especially if there are calves present. They will most likely run along without bother. It is exceptionally muddy so walking boots are highly recommended.

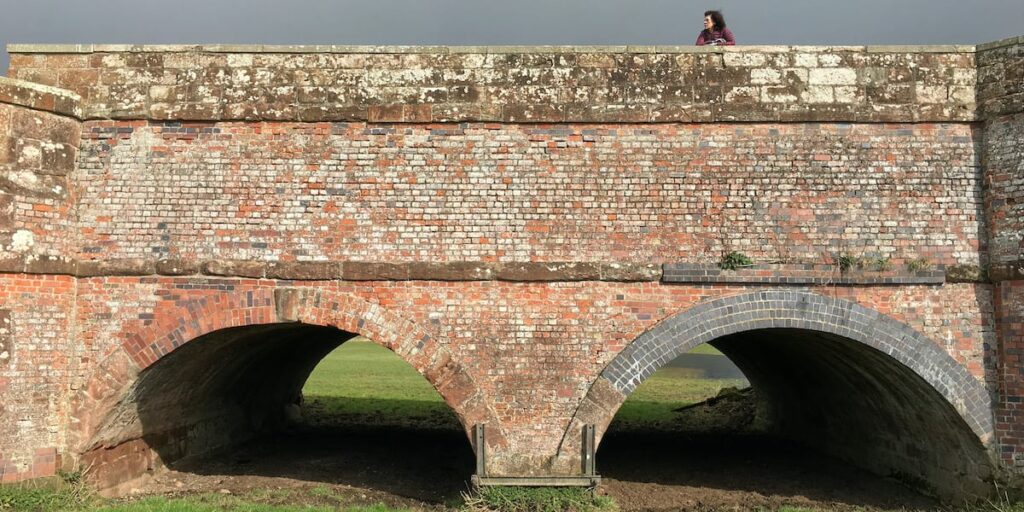

Once you reach the aqueduct, you can get great views of the structure from the side. Here you will see the two arches at the eastern abutment, which remains from the original stone aqueduct that was washed away by flooding (see history below).

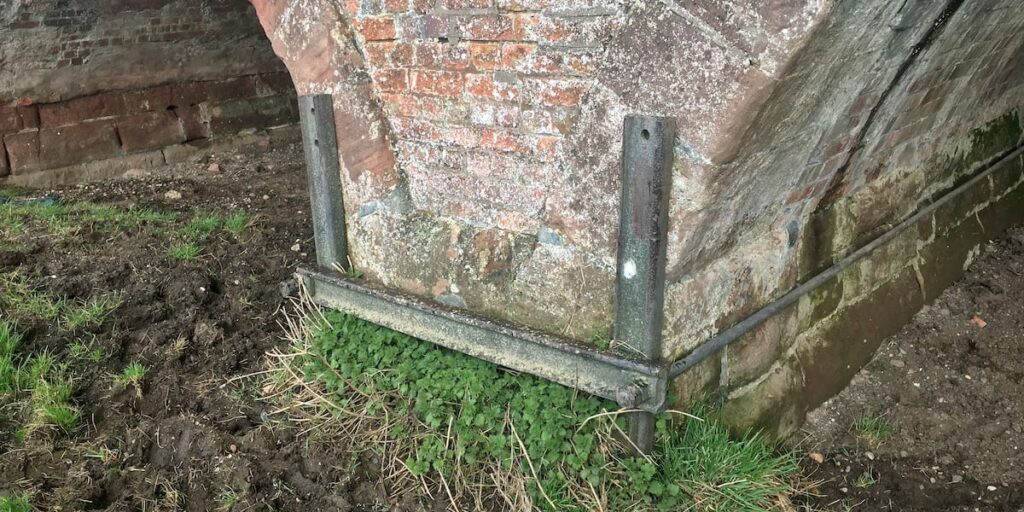

The arches are supported by cast iron bracing, perhaps the canal company were worried that the remaining stones arches could be washed away again?
Underneath the aqueduct, you can get a close-up view of the cast iron cruciform sections on their masonry bases, which provide the primary support.
Head up the embankment to the top of the aqueduct where you will see the original narrowboat entrance and the protruding cast iron bumpers, which were installed to prevent damage to the brickwork by narrowboat collisions.
Walk across the aqueduct to inspect the iron plates and their joints, which have suffered from corrosion over the years. Can you spot the drainage holes by your feet?
You can also peer over the trough to catch a glimpse of the original towpath running alongside. A gate at the western end of the aqueduct prevents you from walking any further.
Before turning back, you can see the detail of where the cast iron trough meets the brickwork and the groove where the stoppage barrier would slide into. This barrier would prevent water from entering the aqueduct, which would then be drained before repairs and maintenance work was carried out.
How long does it take to see Longdon-on-Tern Aqueduct?
The aqueduct will take you around 30 minutes to view. This attraction is quite isolated, so you may wish to consider exploring the village of Longdon-on-Tern to extend your visit.
Is Longdon-on-Tern Aqueduct suitable for a picnic?
The aqueduct is in the middle of the countryside and there are fields around it, which are ideal for a picnic. Having said that, there are cattle around, which can make the fields messy. This attraction is hit and miss when it comes to picnicking, it’s probably best to bring sandwiches and a flask of tea rather than a full-on spread.
How do I get to Longdon-on-Tern Aqueduct?
Longdon-on-Tern is in the countryside and is best reached via car or taxi. There is a layby right opposite where Millers Row meets the B5063. This is the best place to park, there is a sign pointing you in the direction of the aqueduct.
There is a bus service that runs down the B5063 from Telford. It stops at the layby detailed above, check online for departure times.
History of Longdon-on-Tern Aqueduct
1793 – A parliamentary Act is obtained to build the Shrewsbury Canal; a 17-mile stretch that connects the Shropshire Union Canal with the town to deliver cheaper coal.
1793 – Work begins on the canal. The engineer Josiah Clowes begins constructing a stone arched aqueduct to carry the canal over the River Tern.
1795 – Clowes dies then shortly after, an abnormal flood washes away his aqueduct whilst it was still under construction. He is replaced by Thomas Telford who is ordered to rebuild the aqueduct using cast iron by Messrs. William Reynolds & Company at a cost not exceeding £2,000 (£246,000 in 2020) [1].
1796 – The aqueduct is completed; it consists of a cast iron trough whilst retaining the stone abutments that remained from the original structure built by Clowes. The trough weighs a lot less than a conventional stone aqueduct; therefore, it can be carried on fewer supports and does not require puddling (the process of making watertight with clay). A lot less material was required, so the aqueduct was cheaper and constructed faster [2].
1899 – After nearly three decades of declining trade, the canal between Shrewsbury and Eyton was considered for closure due to the bad state of the Longdon-on-Tern Aqueduct. The line was kept open, possibly due to the legal problems involved with closure.
1944 – The canal is abandoned after a continual decline in trade [1]. The line is eventually dewatered, and the embankment is levelled.
1971 – The aqueduct is listed as a Grade I structure [3].
Who came up with the idea of using cast iron?
There is some confusion as to who came up with the idea of using cast iron for the aqueduct. Telford writes in Plymley’s Shropshire that it was first suggested by Thomas Eyton, the chairman of the canal’s committee [1]. On the other hand, Telford writes in a letter “I have just recommended an aqueduct of iron, and it will be executed under my direction”. In the same account, he says “I believe this to be the first aqueduct for the purposes of a navigable canal, which has ever been composed with this metal.” [4], Telford was mistaken.
The first iron aqueduct in the world was completed a month before Telford’s at Longdon-on-Tern. The Holmes Aqueduct on the Derby Canal was built using cast iron and designed by Benjamin Outram. Outram had been a partner in the ironworks of William Jessop, one of the most prominent canal engineers at the time, who was the man that Telford worked with on the Ellesmere Canal, which was being constructed at the same time as the Shrewsbury Canal.
Telford was surrounded by ironmasters in a county that had built up a reputation for innovation in iron production. He had also completed the second iron bridge in the world at Buildwas the previous year. It’s probable that the idea to use cast iron at Longdon was a product of Telford’s environment. It is worth noting that the iron for the aqueduct was supplied by Ketley Ironworks, which was owned by William Reynolds, the director of the Shrewsbury Canal Company. Reynold’s cousin was Abraham Darby III, who built The Iron Bridge in 1779 [1]. All the dots start to connect.
You can see how Telford started to develop the experience he acquired training as a stonemason with the knowledge he picked up in Shropshire. He would go on to design impressive cast iron civil engineering projects such as the Engine Arm Aqueduct, Mythe Bridge, Galton Bridge, and the world-famous Pontcysyllte Aqueduct. One could say Telford used the Longdon-on-Tern Aqueduct as a proving ground for using cast iron as a principal construction material.
Architecture and dimensions
The Longdon-on-Tern Aqueduct consists of an iron trough, square in section, supported on iron uprights with diagonal bracing. Along the south side of the trough is a towpath with plain iron railings. Sandstone and brick abutments are located at each end with round arches through, the east abutment has corner buttresses [3].
How long is the Longdon-on-Tern Aqueduct?
The aqueduct is 187 ft long (57 m) and 16 ft high (4.87 m).
Sources
- Hadfield, C. (1985) The Canals of the West Midlands. Newton Abbot: David & Charles (Publishers) Limited.
- Burton, A. (2015) Thomas Telford Master Builder of Roads and Canals. Barnsley: Pen & Sword Books Ltd.
- Historic England (2021) Shrewsbury Canal, Longdon Aqueduct (Aqueduct on The Shrewsbury Canal) Shrewsbury Canal, The Aqueduct of The Shrewsbury Canal. Available at: https://historicengland.org.uk/listing/the-list/list-entry/1037006 (Accessed: 13 March 2021).
- Smiles, S. (1861) Lives of the Engineers Volume II. London: John Murray.
